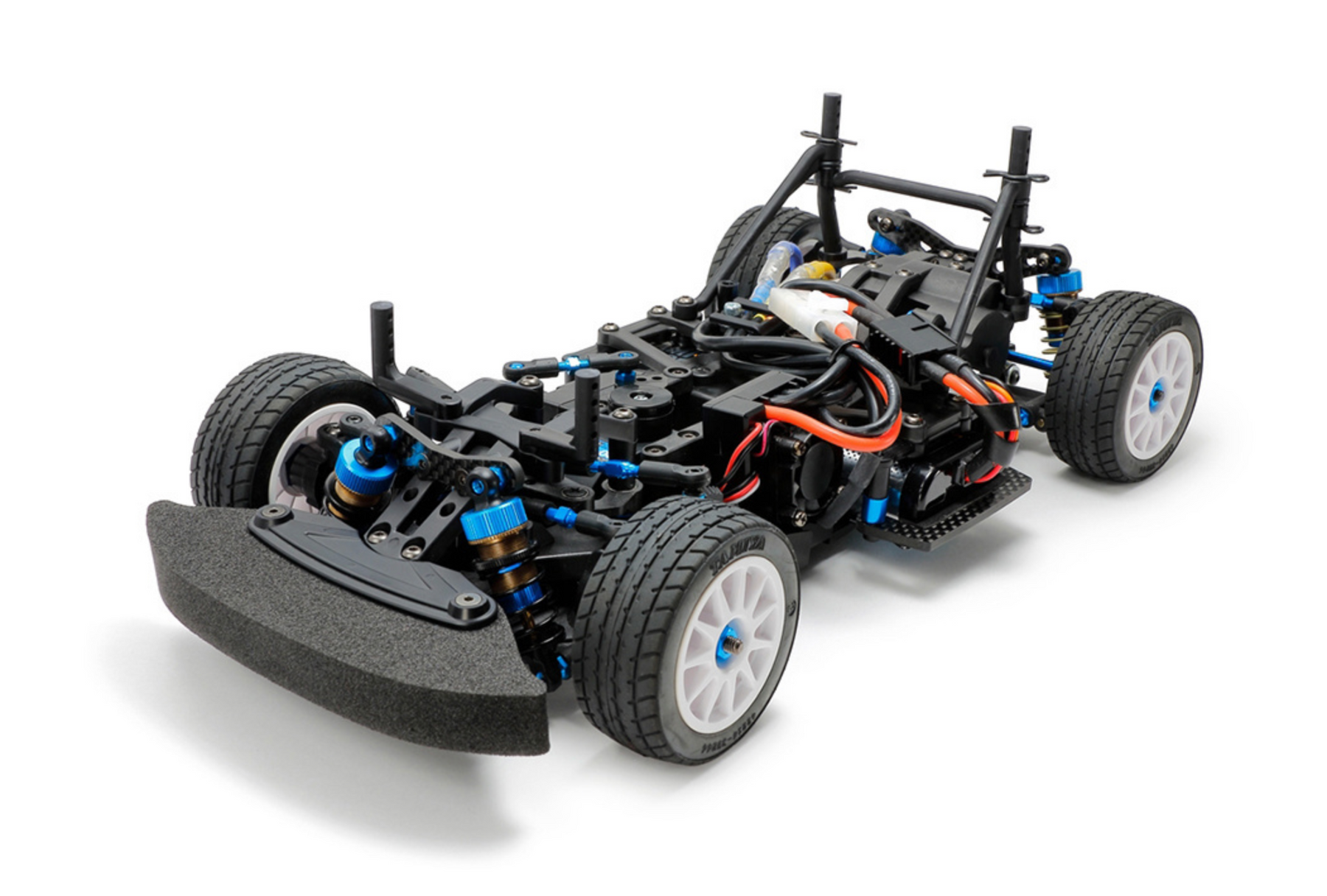

Tamiya RC M-08R Chassis Kit - Item #47480

1/10 Scale 2WD

The M-08R adds a plethora of race-spec parts to the balanced, compact RWD M-08 Concept chassis: an example being the hopped-up drivetrain with a ball differential, universal shafts featuring low-friction cross joints and lightweight aluminium swing shafts, plus 5mm wheel hubs.

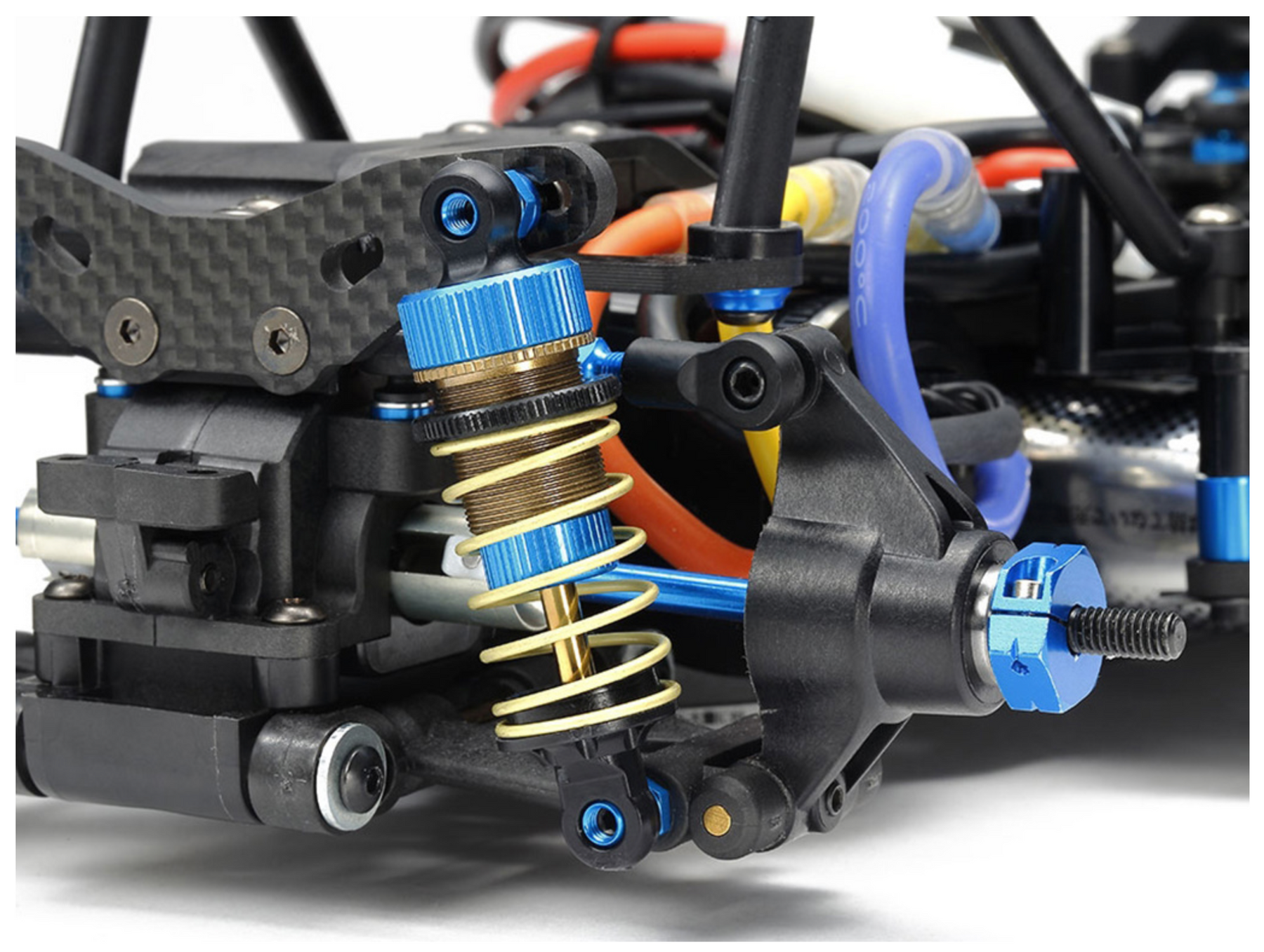

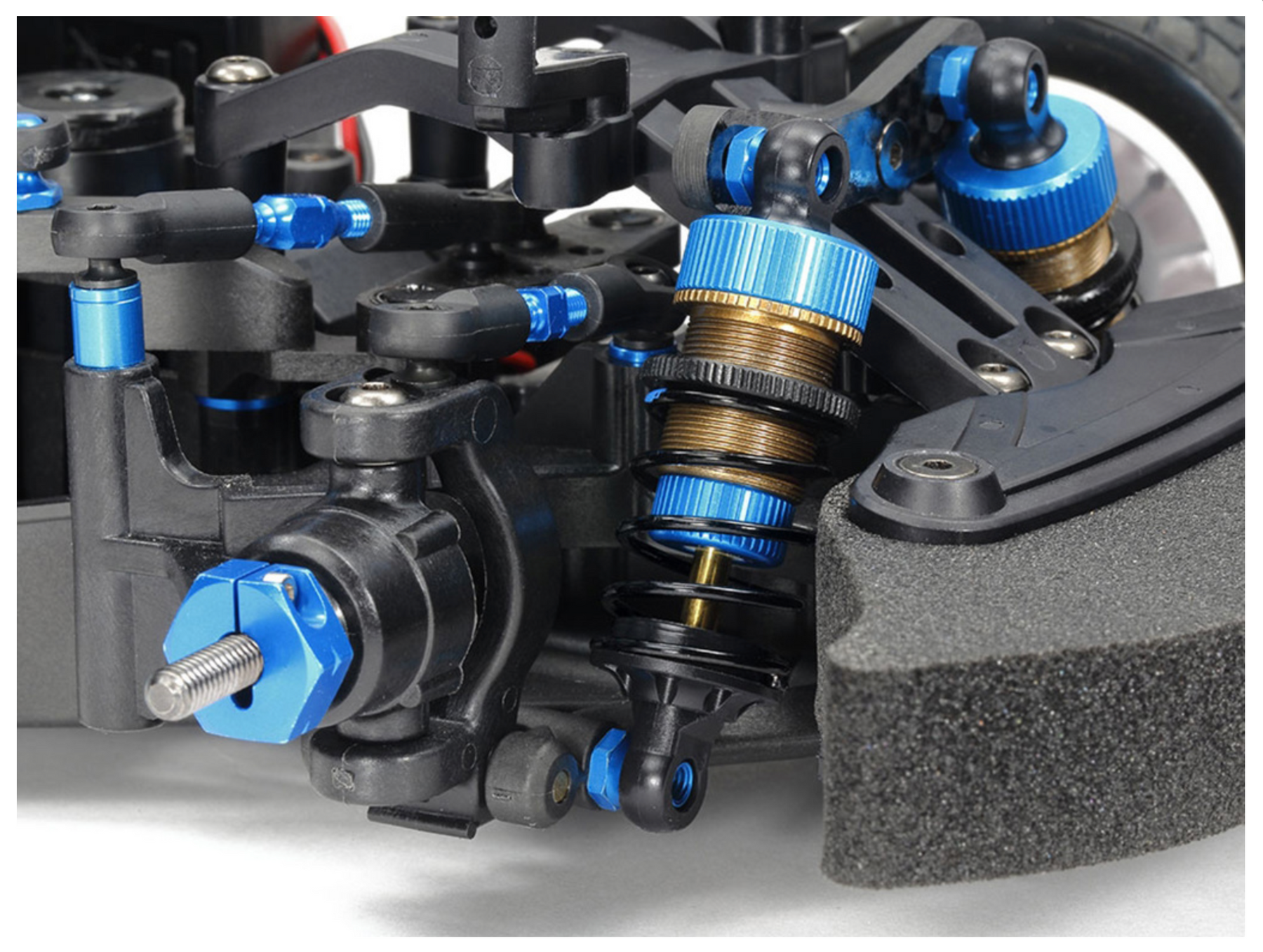

Turnbuckle shaft suspension arm and steering setup components simplify fine-tuning of the M-08R, and titanium-coated shafts are a durable inclusion in the kit. Carbon fibre damper stays are paired with M-Chassis big bore aluminium dampers+ featuring dedicated blue anodised top and bottom caps for a touch of class, while a 20-gram ballast weight is included to get the chassis feeling just how you want it to.

Featured Hop-Up-Options
  • Full ball bearings
  • Ball differential (52T)
  • 33mm lightweight aluminium swing shafts
  • Cross joint for LF assembly type universal shafts
  • 06 module fluorine coated 20T pinion gear
  • M-08 Concept aluminium shafts
  • M-Chassis reinforced freewheel axles
  • 5mm clamp-type wheel hubs
  • Suspension
  • Carbon fibre damper stays (front/rear)
  • Reinforced D parts (suspension arms)
  • Aluminium turnbuckle shafts
  • Titanium coated suspension shafts
  • 5x5mm, 5x11mm hard hex head ball connectors
  • M-Chassis big bore aluminium dampers+
  • 3x 1.3mm-hole pistons
  • 4mm aluminium serrated wheel nuts (blue)
  • 5mm reinforced open face adjusters

Chassis

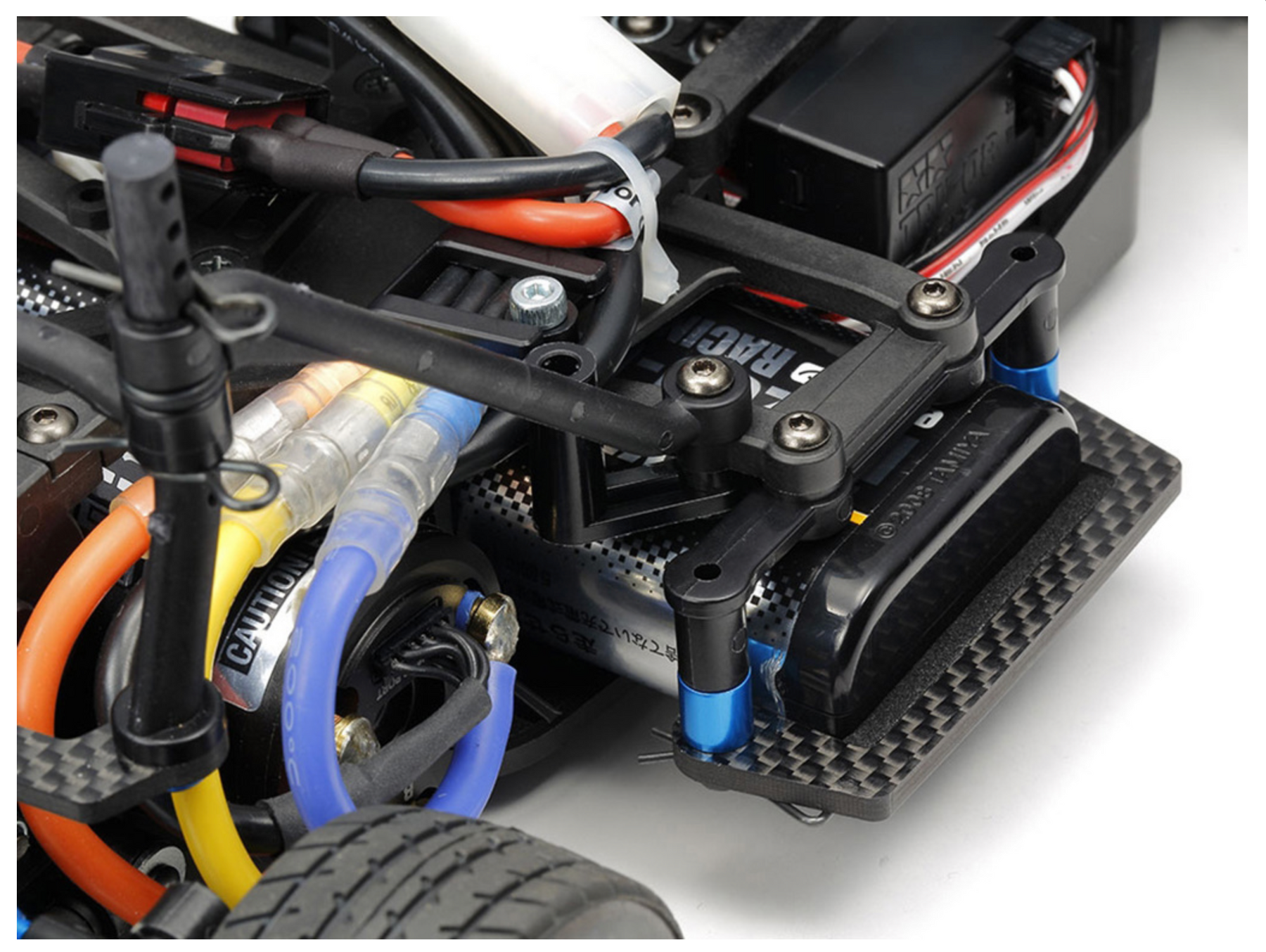

  • Carbon fibre battery holder
  • Carbon fibre body mount base
  • Reinforced K parts (gearbox)
  • Chassis balance weight (20g)
  • Hi-torque servo saver
  • Aluminium ball connectors (blue)
  • Hex head screws

SPECIFICATIONS

  • Length: 319mm (with 225mm wheelbase), width: 165mm
  • Alterable wheelbase: 210mm, 225mm, 239mm
  • Monocoque frame with separate front and rear sections
  • Midship motor, rear-wheel drive
  • Ball differential
  • 3-piece steering tie-rod
  • 4-wheel double wishbone suspension
  • M-Chassis big bore aluminium dampers+
  • Gear ratio = 5.776:1 (using kit 20T pinion); 8 ratios between 6.795:1 and 4.813:1 are possible with separately sold pinions)
  • Electronic speed controller (ESC) is sold separately.

Separately Required Items

  • Compatible Body
  • Type 540 motor (brushless is recommended)
  • Tyres
  • 2-channel R/C system w/ESC
  • R6/AA/UM3 batteries for transmitter
  • Battery pack & charger
