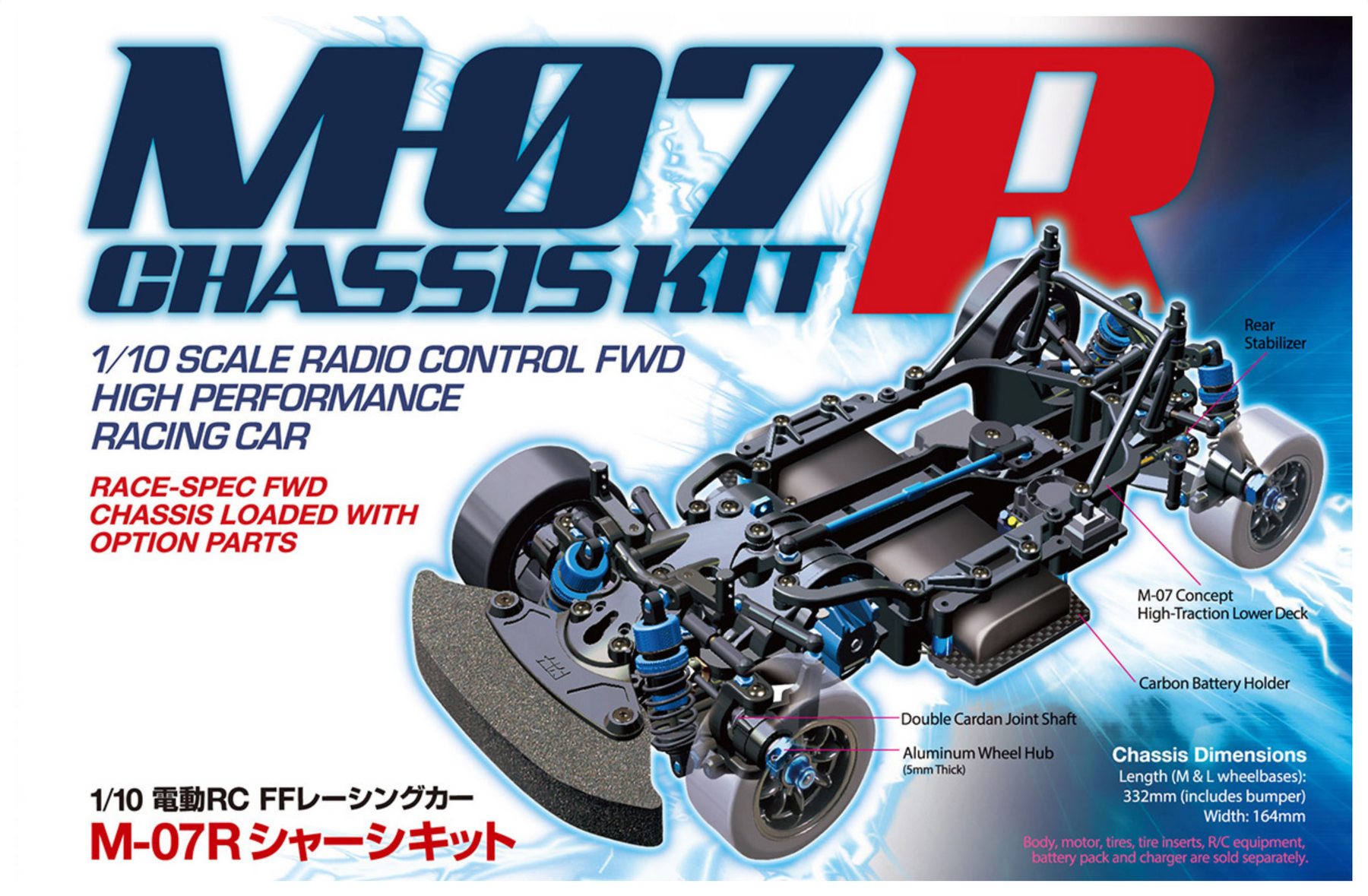

Tamiya RC M-07R Chassis Kit - Item #47520
Quantity:
Tamiya RC M-07R Chassis Kit - Item #47520
1/10 Scale 2WD
This R/C FWD chassis assembly kit takes the cutting-edge M-07 Concept chassis and pairs it with a range of Tamiya Racing Factory (TRF) hand-picked option parts for a racing setup. It features a high-traction lower deck for a ground-hugging drive, plus carbon fibre battery holders, TRF special dampers, reinforced suspension arms and uprights, as well as rear stabiliser.
The result is super grip, even on low-traction surfaces. An efficient drivetrain includes oil-filled gear differentials, full ball bearings, double carbon drive shafts, aluminium cup joints, hard-coated aluminium pinion gear and more.
Featured Hop-Up-Options

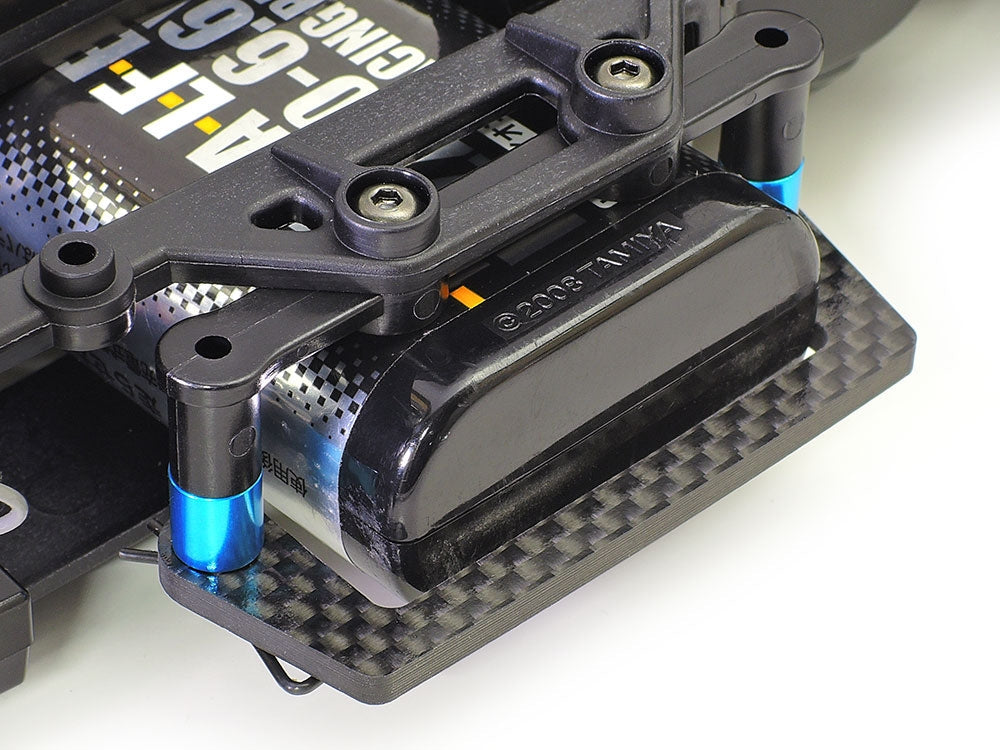

- Carbon fibre battery holder (dedicated component)
- Rear stabiliser

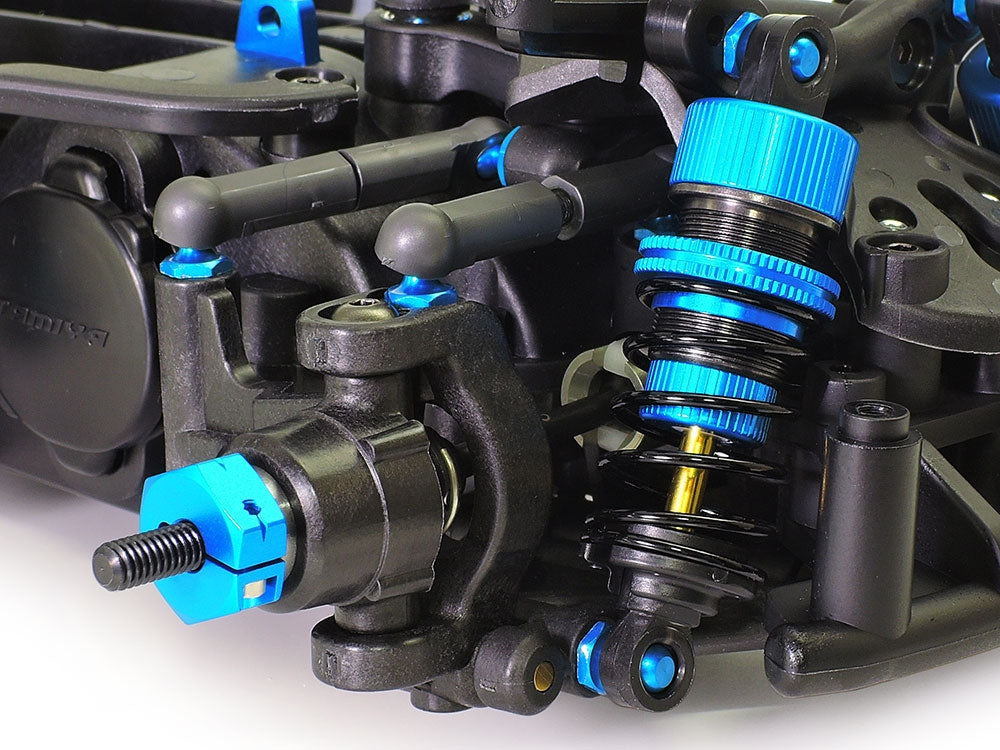

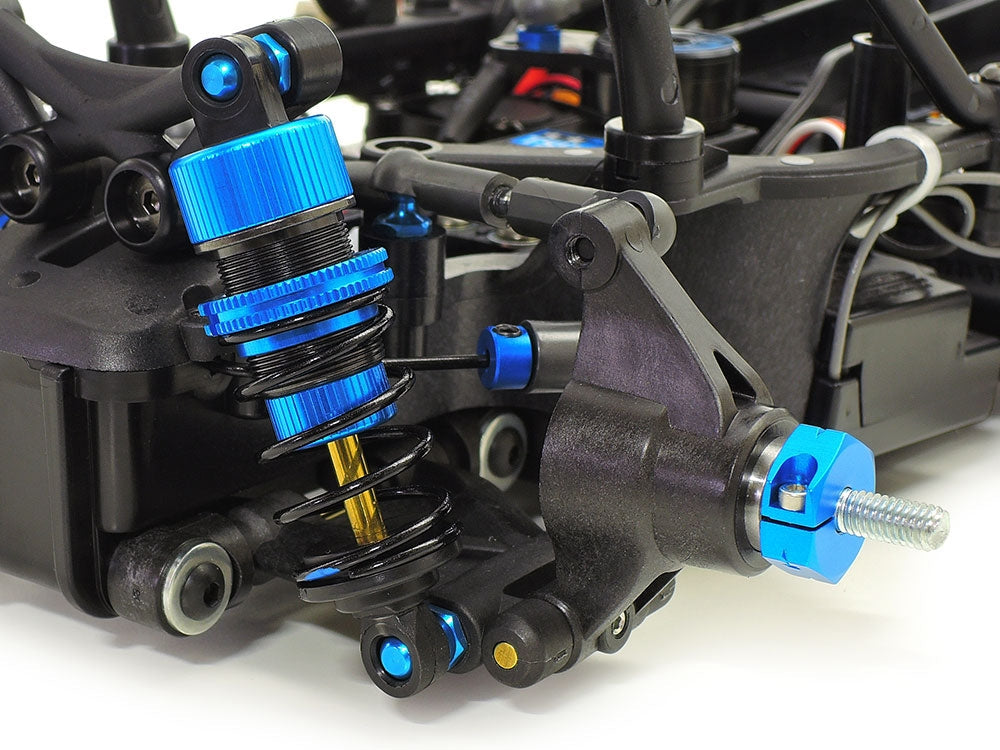

- TRF special dampers (hard black coating)
- Double-carbon drive shafts (33mm)
- High-traction lower deck
- Reinforced C parts (uprights)
- Reinforced D parts (suspension arms)
- 3x106mm aluminium turnbuckle shafts
- Aluminium joint cups
- Clamp-type aluminium wheel hubs (5mm)
- 2.6mm diameter titanium-coated shafts
- 46mm titanium-coated shafts
- 06 module aluminium pinion gear (20T)
- Full ball bearings
- Hi-torque servo saver (black)
SPECIFICATIONS
- Length: 332mm (including bumper)
- Width: 164mm
- Wheelbase: 225mm or 239mm (Selectable)
- Monocoque Frame
- Front-Midship Motor, Front-Wheel Drive
- Oil-Filled Gear Differential
- 3-Piece Steering Tie-Rod
- 4-Wheel Independent Double Wishbone Suspension
- TRF Special Dampers
- Gear Ratio = 5.78:1 using included 20T pinion gear (7.22:1 - 4.81:1 available with separately sold pinion gears)
- Requires an Electronic Speed Controller (sold separately)
- Compatible body
- 2-Channel R/C System w/ESC
- R6/AA/UM3 batteries for transmitter
- Type 540 Motor
- Battery Pack & Charger
Separately Required Items
